Item specifics
- Brand Name:
- ELP
- IR Distance(m):
- 0
- Power Supply(V):
- 5V
- Power Consumption(W):
- 5V/150mA
- Sensor:
- CMOS
- Ships From:
- Shenzhen
- Dimensions (L x W x D)(mm):
- 41*41mm
- Viewing Angle (Degree):
- 170degree
- Connectivity:
- Closed System/CCTV Wired
- Supported Mobile Systems:
- iPhone OS,Symbian,Windows Mobile,Android
- Supported Operating Systems:
- Windows 98,Windows XP,Windows Vista,Windows 7,Mac os,Windows 8
- Type:
- Video Camera
- Video Compression Format:
- MJPEG
- Minimum Illumination(Lux):
- 0.5
- High Definition:
- 1080P(Full-HD)
- Style:
- Mini Camera
- Model Number:
- ELP-USBFHD01M-BL170
- Technology:
- high frame rate
- Special Features:
- high speed usb 2.0 interface
- Lens (mm):
- wide angle fisheye lens
- Sensor:
- 1/2.7" CMOS OV2710 camera module
- Resolution:
- 1920X1080 P. 2 megapicxel full hd
- Picture format::
- MJPEG&YUY2
- USB Protocal:
- USB2.0 HS/FS, USB1.1 FS
- Lens:
- 170degree fisheye lens
- Work temperature :
- DEGREES(-20~70)
- is_customized:
- Yes
- Warranty :
- 2 years
- Support OS :
- UVC or Windows, android ,linux,MAC OS
Product Description
640* 480P 1/4 inch CMOS OV7725 wide angle 170degree fisheye lens USB 2.0 mini board vga fisheye camera module for atmUSD 28.38/piece
300K pixels MJPEG mini cmos usb camera module with wide angle 170degree fisheye lens UVC for android , Windows and LinuxUSD 28.82/piece
720P CMOS OV9712 USB 2.0 Endoscope Borescope wide angle 170degree mini usb Camera module for atm,Medical DeveiceUSD 34.10/piece
5 MegaPixels 2592*1944 MJPEG &YUY2 micro mini UVC 1.1 170degree fisheye lens wide angle usb camera moduleUSD 50.60/piece
720P free driver CMOS OV9712 wide angle 170degree fisheye lens usb camera module linux android MAC,WindowsUSD 33.00/piece
2mp CMOS OV2710 MJPEG30fps at 1080P,60fps at 720P,120fps at 480P 170degree wide angle fisheye lens industrial high speed camera
Package includes:
1) 1PC 2mp usb camera with 170degree fisheye lens
2) 1PC 1m usb cable
Advantage of usb camera:
1)The HD 1080P USB CMOS board camera module(model: ELP-USBFHD01M serials) is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys.
2)It use high quality image sensors made by OmniVision, one of the world leaders in this field of electronics.
3)The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.
Specification:
|
Optional models |
ELP-USBFHD01M-BL170 (170degree fisheye lens) |
|
Sensor |
1/2.7" CMOS OV2710 |
|
Lens size |
200W, 2.0megapixel, 1920(H)x1080(V)pixels |
|
Max. Resolution |
1920X1080 |
|
Picture format |
MJPEG |
|
USB Protocal |
USB2.0 HS/FS, USB1.1 FS |
|
Support free driver |
USB Video Class(UVC)1.1 |
|
Auto exposure AEC |
Support |
|
Auto white blance AEB |
Support |
|
Frame rate |
1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps |
|
Adjustable parameters |
Brightness/Contrast/Color saturation /Definition/Gamma/WB |
|
Night vision |
optional, can choose IR board |
|
view angle |
170degree fisheye lens |
|
voltage |
DC 5V |
|
current |
150mA |
|
work temperature |
DEGREES(-20~70) |
|
Size |
32x32mm/38*38mm |
|
Support OS |
WinXP/Vista/WIN7/WIN8 |
Applications:
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.
Products display:
170degree fisheye lens effect:
Packing:
Dear customers,your attention, please:
Our Payment term
2.A big discount is available for you if you need a large amount , please contact us .
1. We only ship to your confirmed address. Please make sure your shipping address
3. The shipment by China Post Air Mail for less than 2kg goods ,generally it will take
2. For product quality problems ,please contact us and provide us with evidence within 3 days after receiving 3.Items returned after 7 days of delivery are only for repair.
Packaging Details
- Unit Type:
- piece
- Package Weight:
- 0.350kg (0.77lb.)
- Package Size:
- 12cm x 12cm x 12cm (4.72in x 4.72in x 4.72in)
640* 480P 1/4 inch CMOS OV7725 wide angle 170degree fisheye lens USB 2.0 mini board vga fisheye camera module for atm
- Store Promotion:
- Get a US $3 coupon
- Return Policy:
-
Returns accepted if product not as described, buyer pays return shipping fee; or keep the product & agree refund with seller. View details
- Seller Guarantees:
Add to My Favorite Stores (6Adds)
Item specifics
- Products Status:
- Stock
- Brand Name:
- ELP
- Image Sensor:
- CMOS
- Max. Resolution:
- 640x480
- Package:
- Yes
- Interface Type:
- USB
- Pixels:
- ≤ 1 Mega
- Auto Focus:
- No
- Model Number:
- ELP-USB30W02M-L170
- Image sensor:
- CMOS OV7725 usb camera module
- Max resolution :
- 640*480P vga usb camera module
- Lens:
- 170degree fisheye lens
- Picture format:
- YUY2 and MJPEG optional
- USB Protocal:
- USB2.0 HS/FS
- Support free driver:
- USB Video Class(UVC)1.1
- Auto exposure AECAuto white blance AEB:
- Support
- Mini Size:
- 26*26mm/32*32mm
- High frame rate:
- 60fps at 480P
- Interface :
- High speed usb 2.0 interface
Product Description

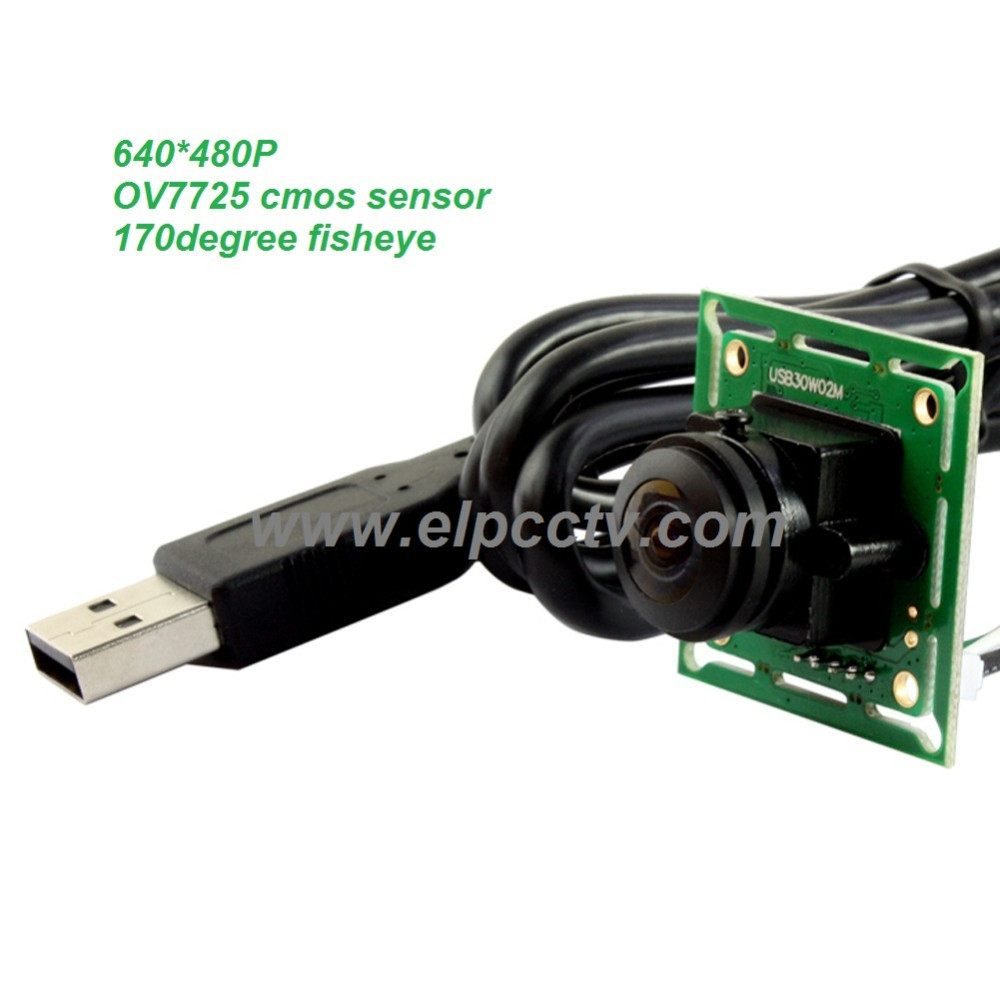

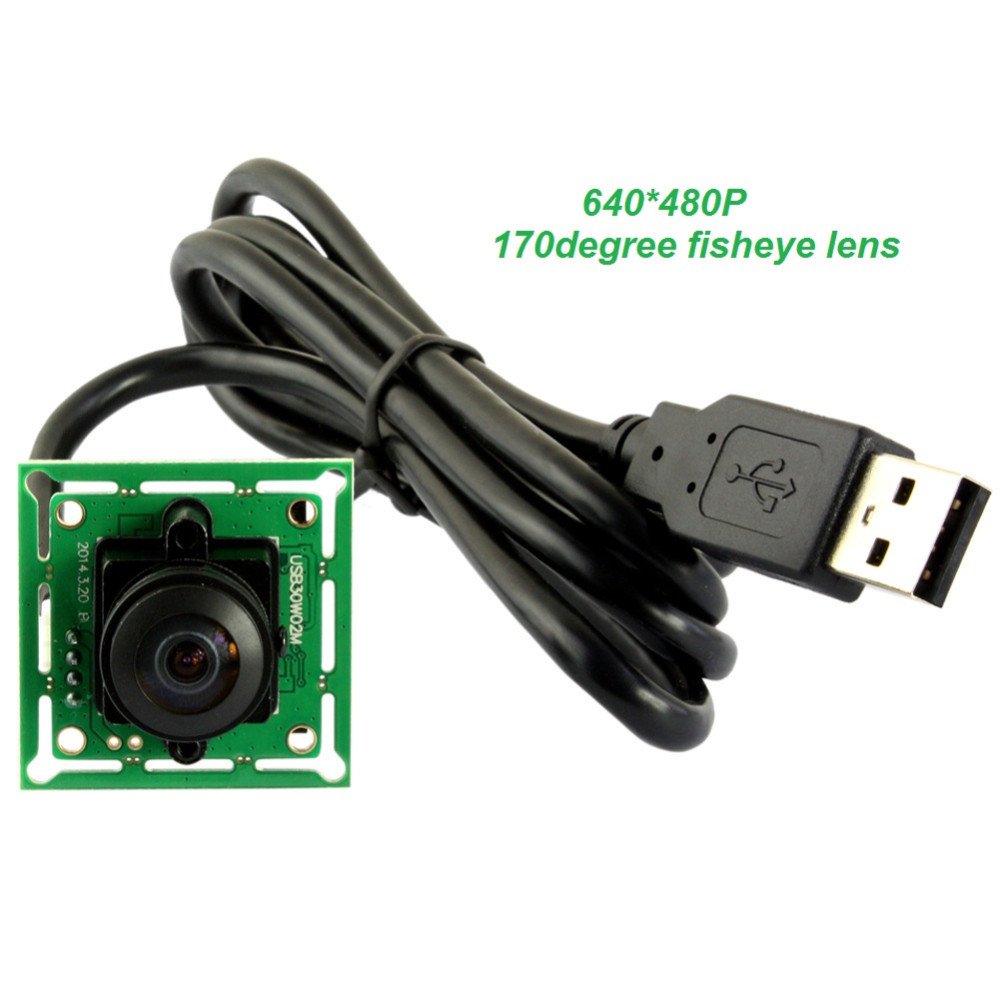

640* 480P 1/4 inch CMOS OV7725 wide angle 170degree fisheye lens USB 2.0 mini board vga fisheye camera module for atm
Package includes:
1) 1PC usb camera module with 170 degree fisheye lens
2) 1PC 1m usb cable
Specifications:
Sensor:OV7725
size: 1/4 inch
Resolution: 640X480 VGA
Picture format: YUY2 and MJPEG optional/USB Protocal:USB2.0 HS/FS
Support free driver: USB Video Class(UVC)1.1
Auto exposure AEC/Support:Auto white blance AEB Support
Effective Pixels:
640 (H) x 480 (V) pixels/480(H) x 480 (V) pixels/450 (H) x 450 (V) pixels/352 (H) x 288 (V) pixels/320 (H) x 240 (V) pixels/288(H) x 288 (V) pixels/240 (H) x 240 (V) pixels
(Other special size resolution is customized, such as 480(H) x 480 (V) pixels)
Performance:
640 (H) x 480 (V) pixels MJPEG 60fps YUY2 30fps
480(H) x 480 (V) pixels MJPEG 30fps YUY2 30fps
450 (H) x 450 (V) pixels MJPEG 30fps YUY2 30fps
352(H) x 288 (V) pixels MJPEG 30fps YUY2 30fps
320 (H) x 240 (V) pixels MJPEG 30fps YUY2 30fps
288(H) x 288 (V) pixels MJPEG 30fps YUY2 30fps
240 (H) x 240 (V) pixels MJPEG 30fps YUY2 30fps
Adjustable parameters:Brightness/Contrast/Color saturation/Definition/Gamma/WB
voltage: DC 5V/ current: 120mA/ work temperature:DEGREES(-20~70)/Size:32x32mm 26x26mm
Support OS:WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above
Applications
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental
monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro
HD surveillance, endoscope, Medical auxiliary equipment, etc.

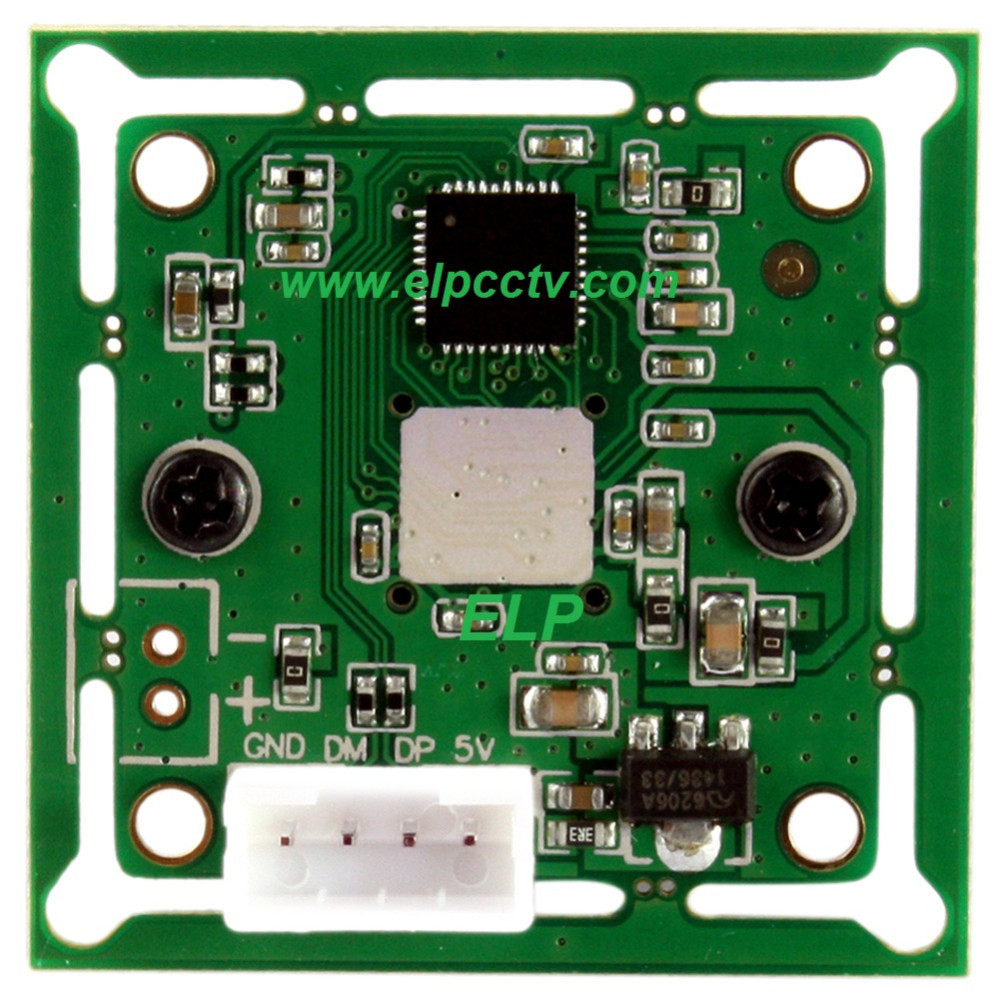

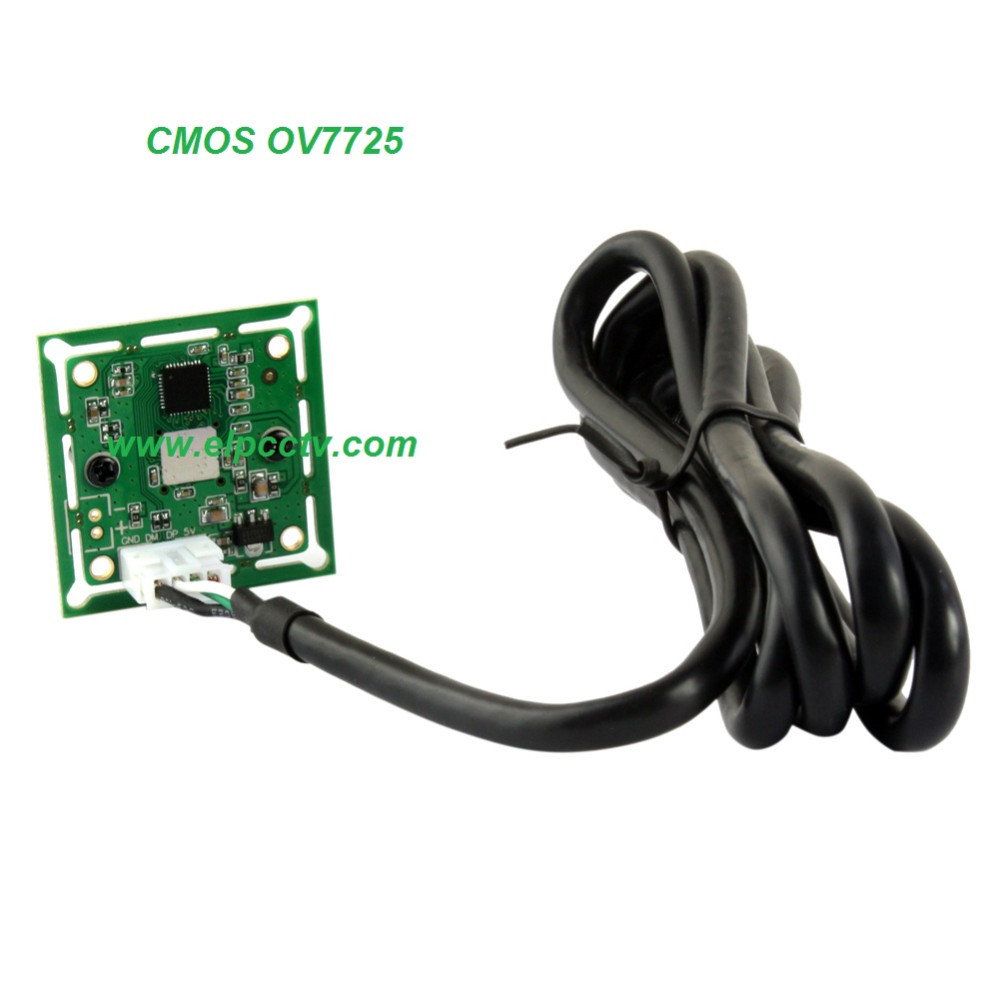

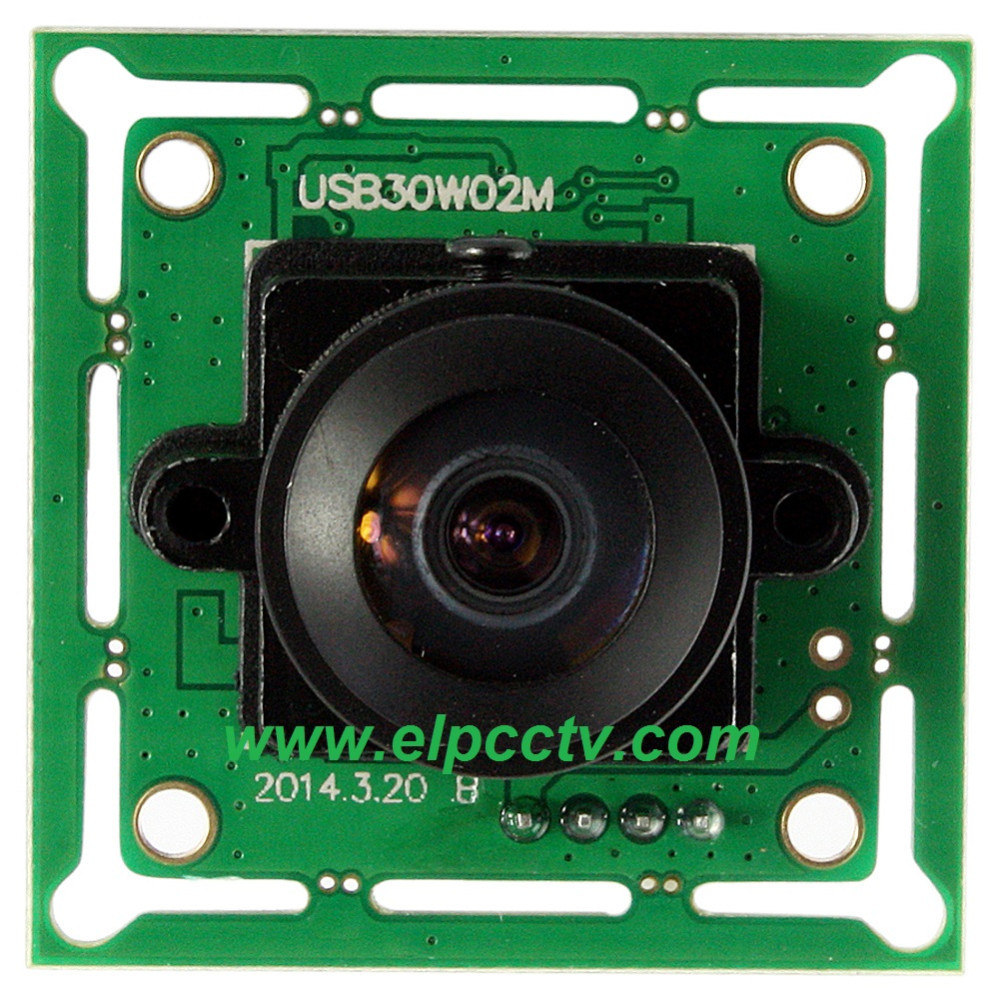

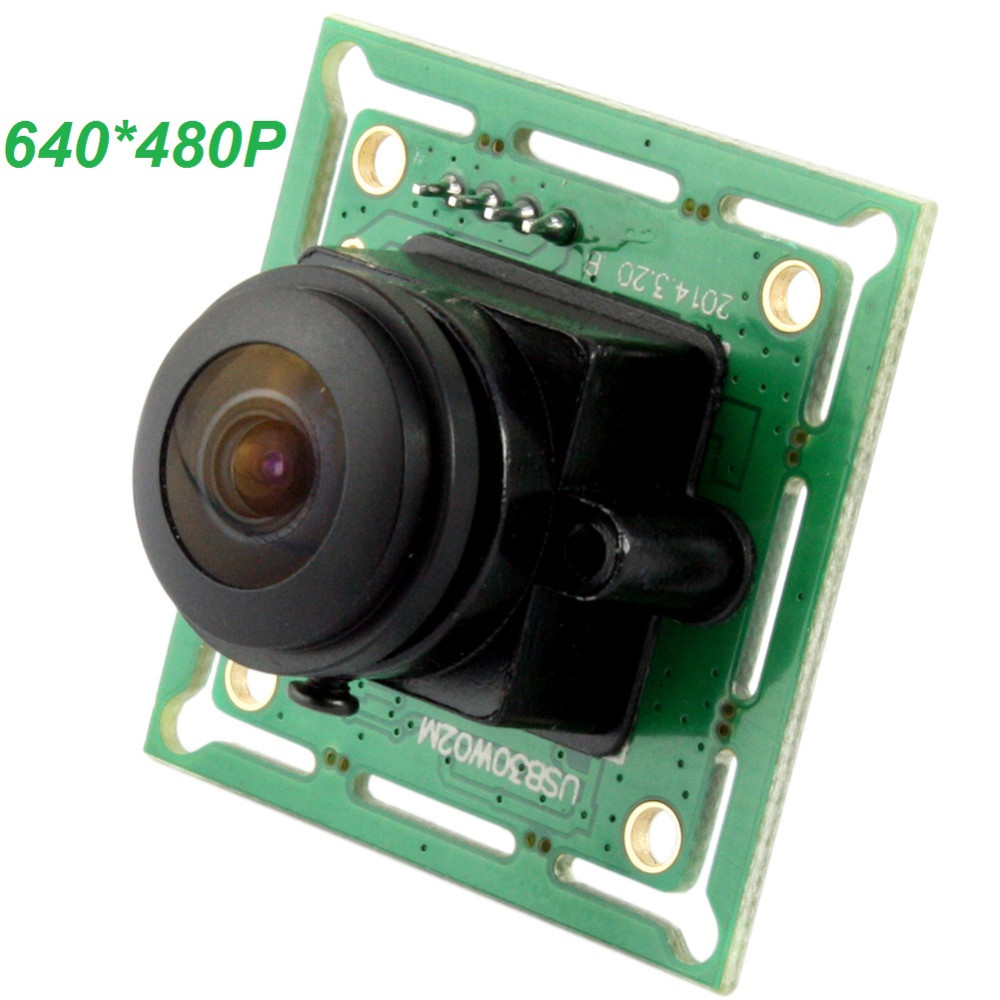

Product details:
Specially designed packing:
Your attention, please:
Our Payment term
2.A big discount is available for you if you need a large amount , please contact us .
1. We only ship to your confirmed address. Please make sure your shipping address
3. The shipment by China Post Air Mail for less than 2kg goods ,generally it will take
2. For product quality problems ,please contact us and provide us with evidence within 3 days after receiving 3.Items returned after 7 days of delivery are only for repair.
Packaging Details
- Unit Type:
- piece
- Package Weight:
- 0.300kg (0.66lb.)
- Package Size:
- 12cm x 12cm x 10cm (4.72in x 4.72in x 3.94in)
12mm lens 1080P CMOS OV2710 MJPEG 30fps usb industrial high speed camera
- Store Promotion:
- Get a US $3 coupon
- Return Policy:
-
Returns accepted if product not as described, buyer pays return shipping fee; or keep the product & agree refund with seller. View details
- Seller Guarantees:
Add to My Favorite Stores (6Adds)
Item specifics
- Technology:
- Infrared
- Brand Name:
- ELP
- IR Distance(m):
- IR 25m
- Power Supply(V):
- 5V
- Power Consumption(W):
- 5V/150mA
- Sensor:
- CMOS
- Ships From:
- Shenzhen
- Dimensions (L x W x D)(mm):
- 32*32mm/38*38mm board
- Viewing Angle (Degree):
- 25degree
- Connectivity:
- Closed System/CCTV Wired
- Supported Mobile Systems:
- iPhone OS,Symbian,Windows Mobile,Android
- Supported Operating Systems:
- Windows 98,Windows XP,Windows Vista,Windows 7,Mac os,Windows 8
- Type:
- Video Camera
- Lens (mm):
- 12mm
- Video Compression Format:
- MJPEG
- Minimum Illumination(Lux):
- 0.01
- High Definition:
- 1080P(Full-HD)
- Model Number:
- ELP-USBFHD01M-RL12
- Style:
- Mini Camera
- Special Features:
- high speed usb 2.0 interface
- Sensor:
- 1/2.7" CMOS OV2710 camera module
- Resolution:
- 1920X1080 P. 2 megapicxel full hd
- Picture format::
- MJPEG&YUY2
- USB Protocal:
- USB2.0 HS/FS, USB1.1 FS
- Lens:
- 12mm lens (2.1/3.6/2.8/6/8mm lens optional)
- Work temperature :
- DEGREES(-20~70)
- is_customized:
- Yes
- Warranty :
- 2 years
- Support OS :
- UVC or Windows, android ,linux,MAC OS
- Day&Night:
- with IR led for night vision
Product Description

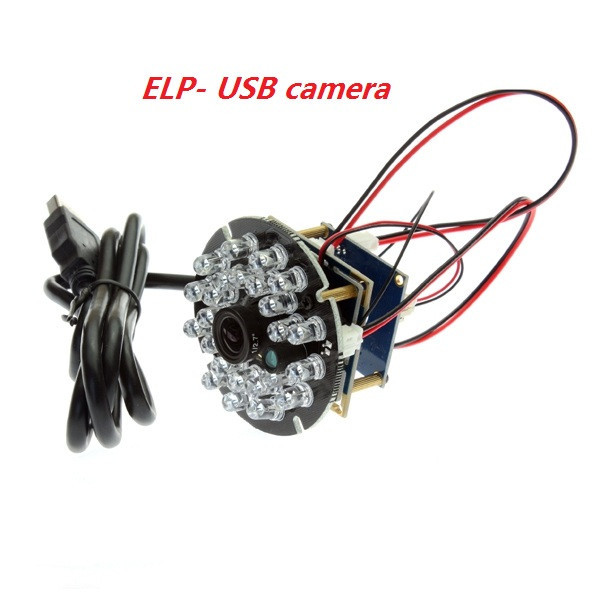

HD 2 megapixel 1080p mini ir infrared day night vision usb camera module with IR cut ELP-USBFHD01M-RL12
Advantages of 1080P usb camera:
1)The HD 1080P USB CMOS board camera module is ideal for many applications like :
security systems, portable video system, video phones, industrial machine monitoring and toys.
2)It use high quality image sensors made by OmniVision, one of the world leaders in this field of electronics.
3)The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.
Features:
*CMOS 1080P sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate– deliver 60 fps in 1280X720 resolution,30 fps in 1920X1080 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or Android 4.0 above.
*Camera with UVC.
Specification:
|
Optional models |
ELP-USBFHD01M-RL12 |
|
Sensor |
1/2.7" CMOS OV2710 |
|
Lens size |
200W, 2.0megapixel, 1920(H)x1080(V)pixels |
|
Max. Resolution |
1920X1080 |
|
Picture format |
MJPEG |
|
USB Protocal |
USB2.0 HS/FS, USB1.1 FS |
|
Support free driver |
USB Video Class(UVC)1.1 |
|
Auto exposure AEC |
Support |
|
Auto white blance AEB |
Support |
|
Frame rate |
1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps |
|
Adjustable parameters |
Brightness/Contrast/Color saturation /Definition/Gamma/WB |
|
Night vision |
optional, can choose IR board |
|
Lens |
2.1/2.8/3.6/6/8/12mm lens optional |
|
voltage |
DC 5V |
|
current |
150mA |
|
work temperature |
DEGREES(-20~70) |
|
Size |
32x32mm/38*38 |
|
Support OS |
WinXP/Vista/WIN7/WIN8 /Linux with UVC
|
Package includes:
1) 1 piece 2mp camera module with ir led
2) 1 piece 1m usb cable
Product display:

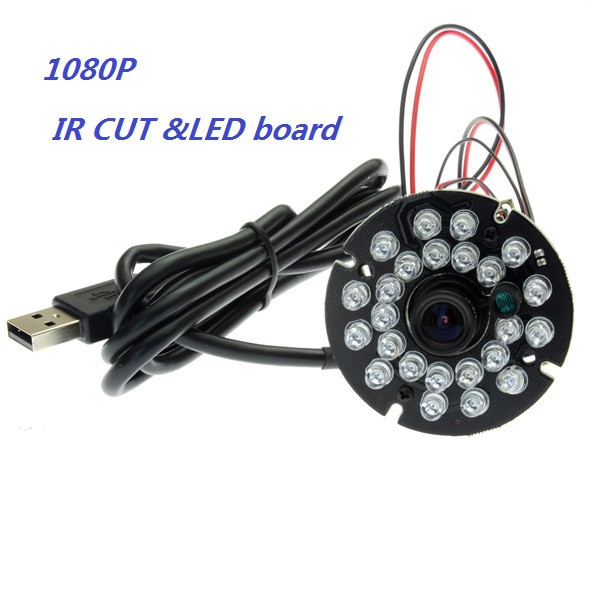

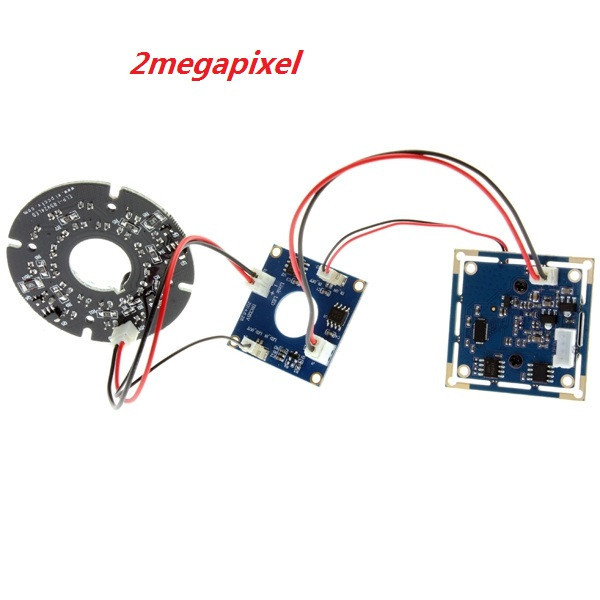

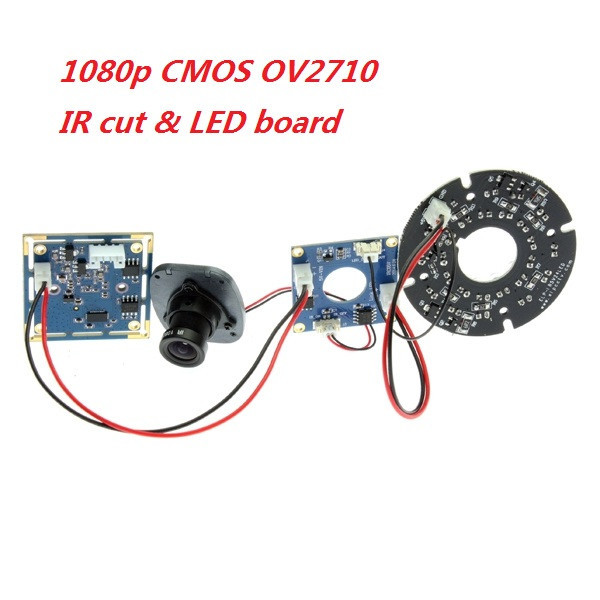

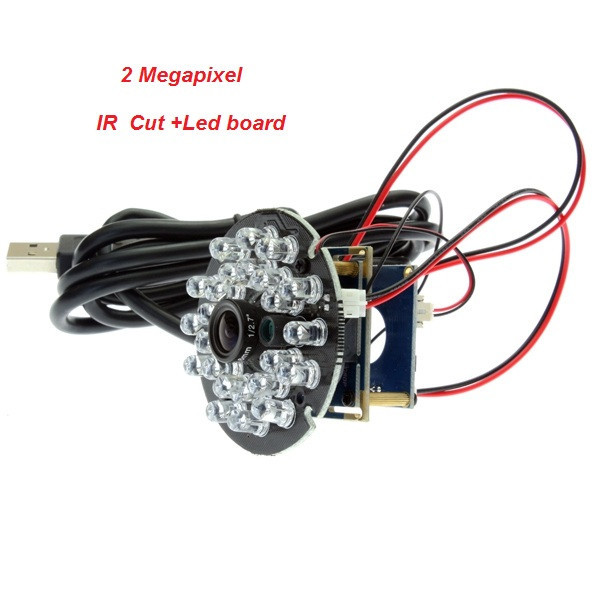

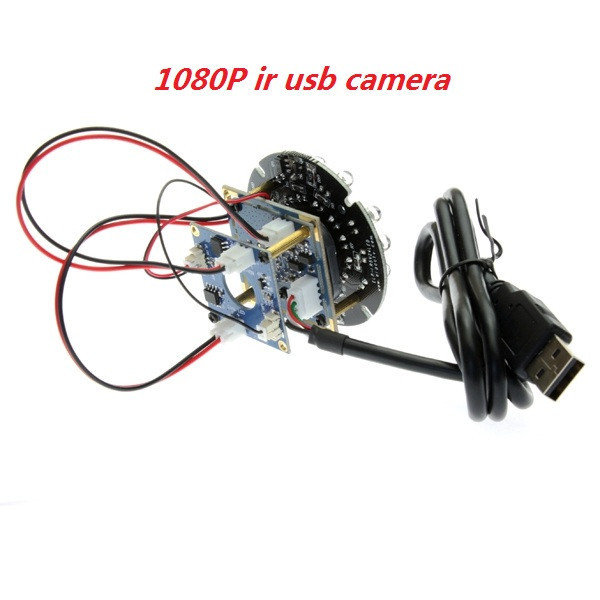

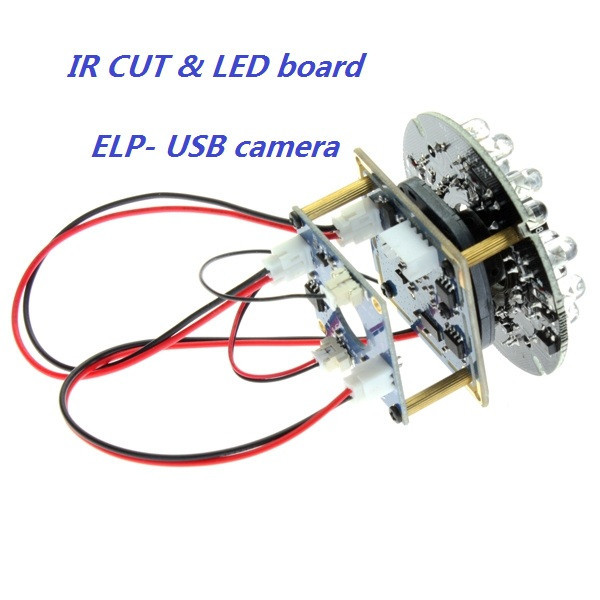

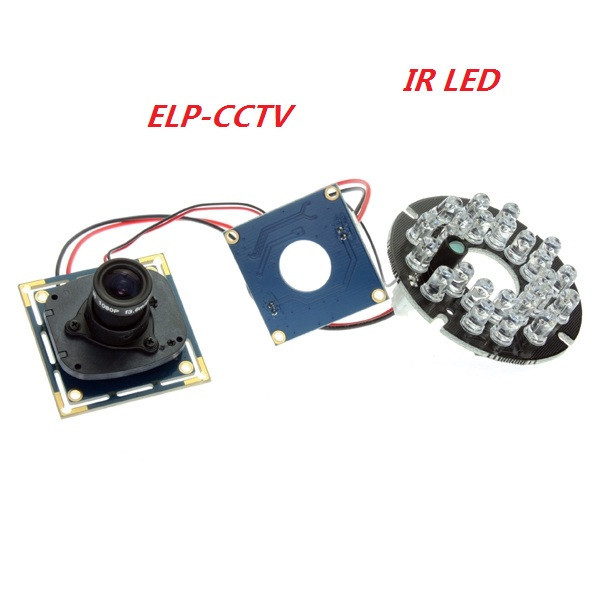

IR night vision usb camera module:

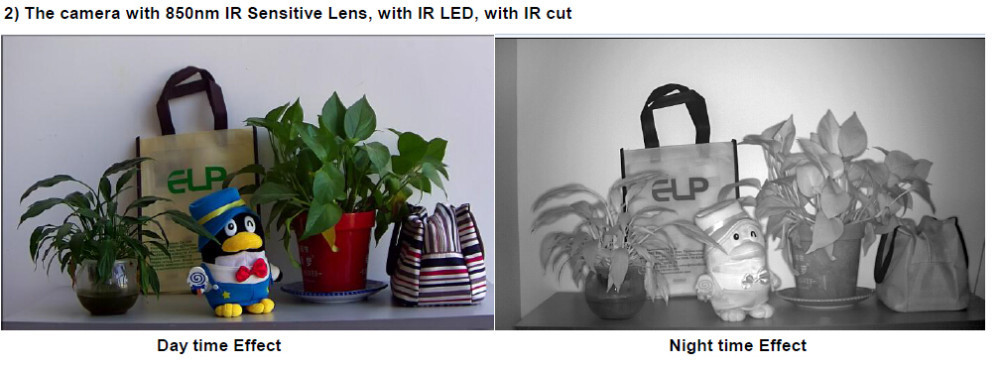

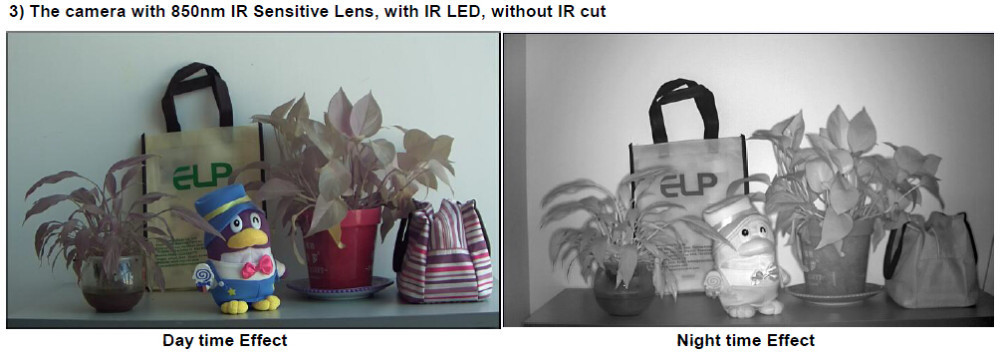

Why we choose ir led with IR CUT, please compare the following picture:
Packing :
Your attention, please:
Our Payment term
2.A big discount is available for you if you need a large amount , please contact us .
1. We only ship to your confirmed address. Please make sure your shipping address
3. The shipment by China Post Air Mail for less than 2kg goods ,generally it will take
2. For product quality problems ,please contact us and provide us with evidence within 3 days after receiving 3.Items returned after 7 days of delivery are only for repair.
Packaging Details
- Unit Type:
- piece
- Package Weight:
- 0.350kg (0.77lb.)
- Package Size:
- 12cm x 12cm x 12cm (4.72in x 4.72in x 4.72in)
